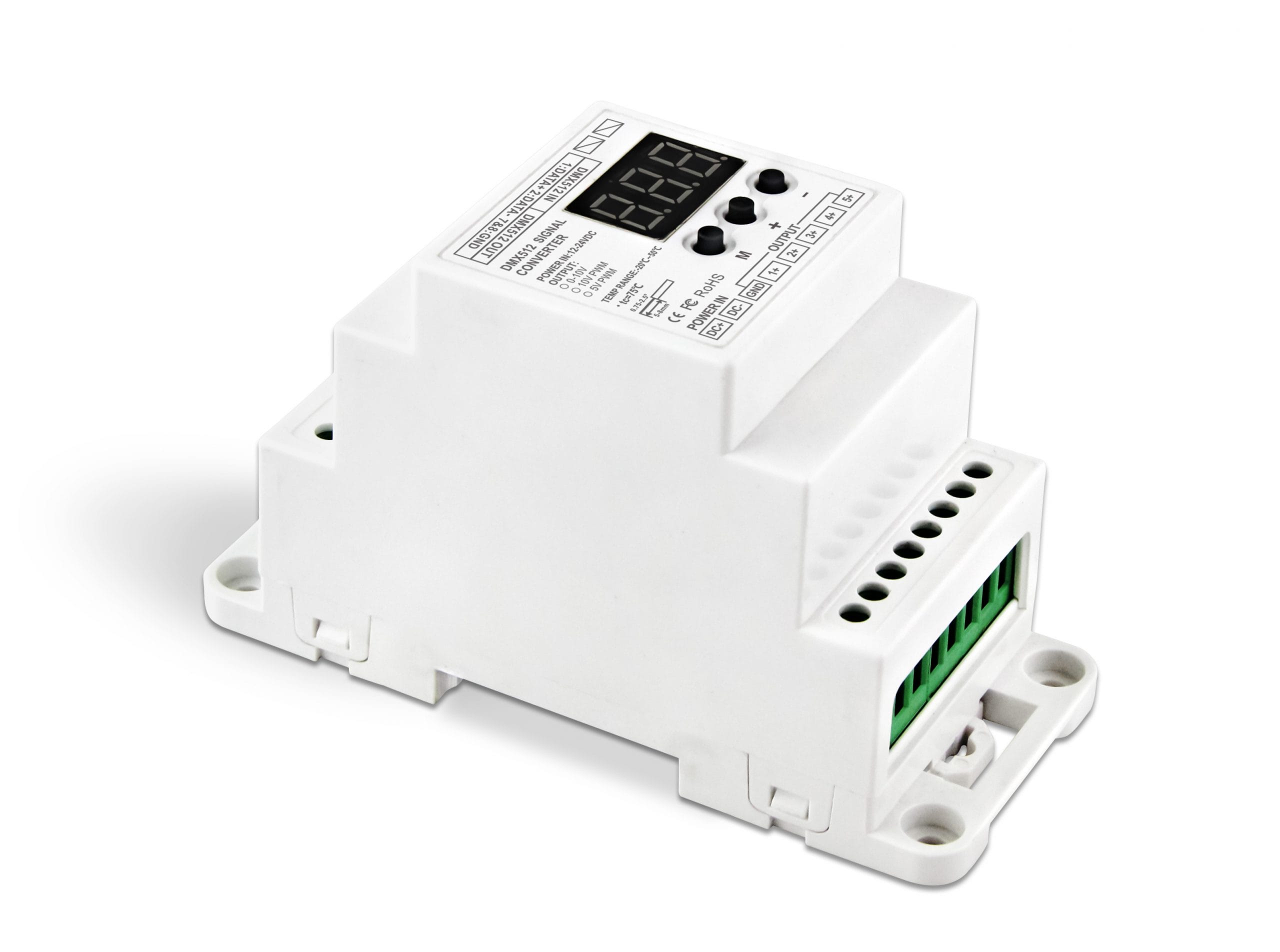

WORLD UNIQUEEN WU-835-010V-DIN-RJ45 5-Channel DIN Rail DMX512 Signal Converter
$108.90
SEND US A MESSAGE
CONTACT INFORMATION
Your personal data will be used to process your enquiry, support your experience throughout this website, and for other purposes described in our privacy policy.
The WORLD UNIQUEEN WU Series Signal Converters are specifically developed for constant voltage LED lamps.
Description
The WORLD UNIQUEEN WU-835-010V-DIN-RJ45 carries an advanced micro-computer control technology that is able to convert and transfer standard DMX512/1990 signal to 0-10V signal or PWM 5V, 10V signal.
In addition, this device features 5 output channels and each of them can be controlled independently.
Features
- Automatically adapts input voltage: DC12V-24V.
- Input: Standard DMX512 signal; 3-digit display shows DMX address code.
- 5 isolate output channels.
- Indicator of the DMX512 signal receiving status.
- Wrong wiring protection at DMX port.
- Power loss memory function.
- The DIN rail style design facilitates the installation of large-scale projects.
TECHNICAL DOC.
| WORLD UNIQUEEN WU-835-010V-DIN-RJ45 5-Channel DIN Rail DMX512 Signal Converter Manual | ||
|---|---|---|
| WORLD UNIQUEEN WU-835-010V-DIN-RJ45 5-Channel DIN Rail DMX512 Signal Converter Manual | 631.73 KB |
SPECIFICATIONS
