EAGLE TRUSS 290X290MM BOX TRUSS 50X3MM MAIN TUBE, TUV CERTIFIED

$181.50 – $852.50

SEND US A MESSAGE

CONTACT INFORMATION

45/7-9 Percy St,
Auburn NSW 2144

02 9188 3955

enquire@phantos.com.au

Your personal data will be used to process your enquiry, support your experience throughout this website, and for other purposes described in our privacy policy.

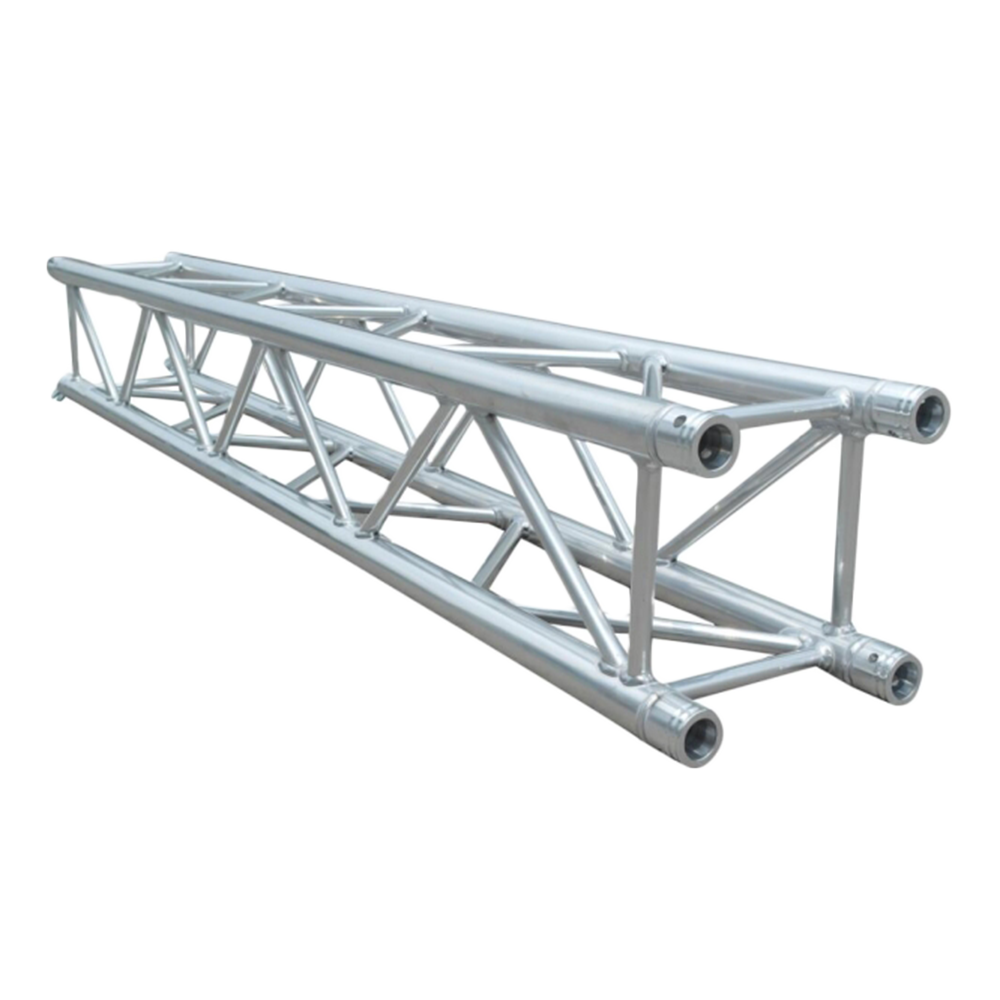

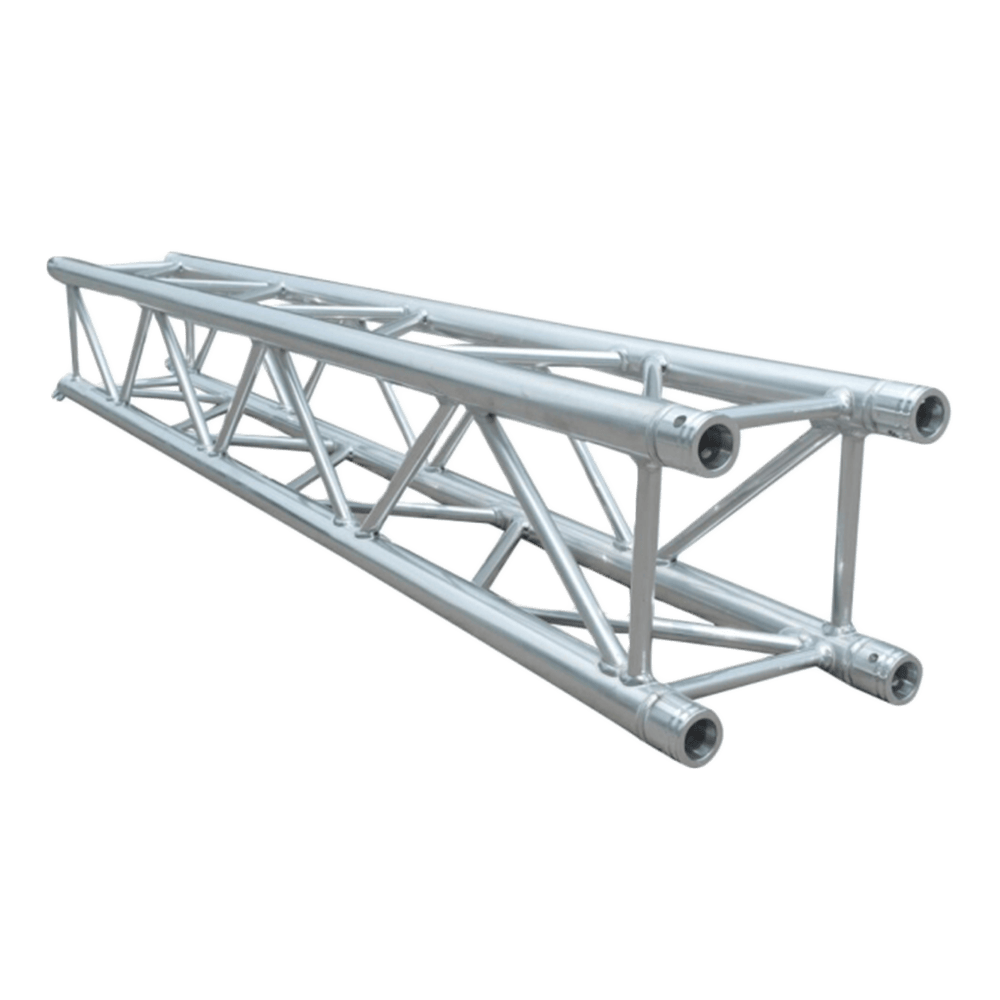

TS294 is a series of medium-duty spigot box trusses that are popular for their exquisite loading capability. They’re ideal for a plethora of events, like stage lighting, mobile productions, exhibitions, and even nightclubs and permanent installations.

The TS294 290mm box truss is the most popular type of box truss used in the production, rental industry as well as permanent installations. These medium-duty trusses strike the right balance between load and size, offering great loading capacity while not taking a lot of storage space.

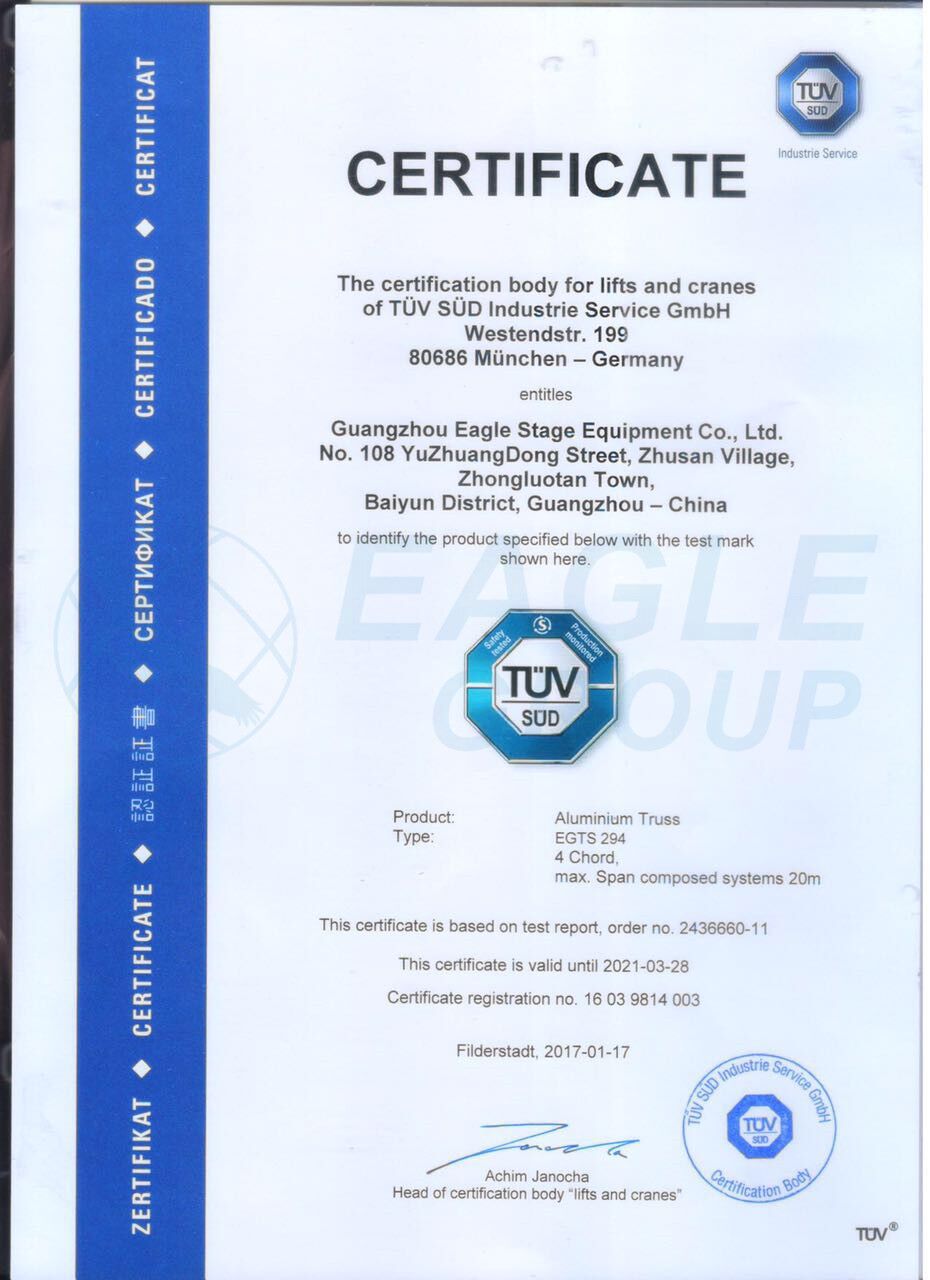

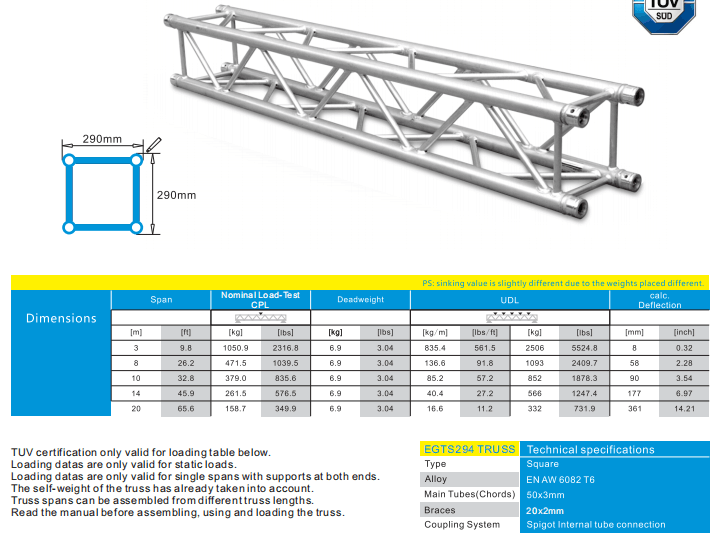

Measures 290X290mm with 4 of 50x3mm CHS main cords and 20x2mm braces. Constructed using 6082 T6 aluminium, these box trusses are TUV certified with load chart and structure report.

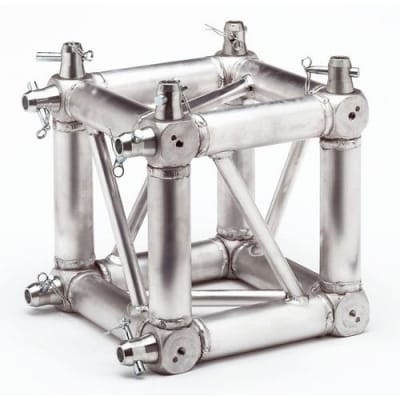

TS294 comes in different standard lengths including 0.5M, 1.0M, 1.5M, 2.0M, 2.5M, and 3.0M. All sections are fitted with conical couplers and pin. A variety of different structures can be created with TS294 angles, T junctions as well as corner cubes etc..

We can custom design and manufacture these 290mm box truss structures specified by architectural designers. They can be powder coated to black to suit the specific needs of different projects.
